Pergola
Intelligent outdoor architecture
Architecture beyond walls
Atlas solar-powered aluminium pergola systems transform terraces, courtyards, and poolside pavilions into fully functional outdoor living spaces. Engineered with corrosion-resistant powder-coated aluminium, our pergolas offer intelligent climate control, weather protection, and architectural beauty — extending your living space beyond the envelope of the building.
Unlike timber structures that warp in humidity or fabric awnings that tear in high winds, Atlas pergolas are extruded from corrosion-resistant powder-coated aluminium — the same material trusted in marine and aerospace engineering. Every system is solar-ready, wireless, and engineered to withstand the tropical storms of Southeast Asia.
Built for tropical climates

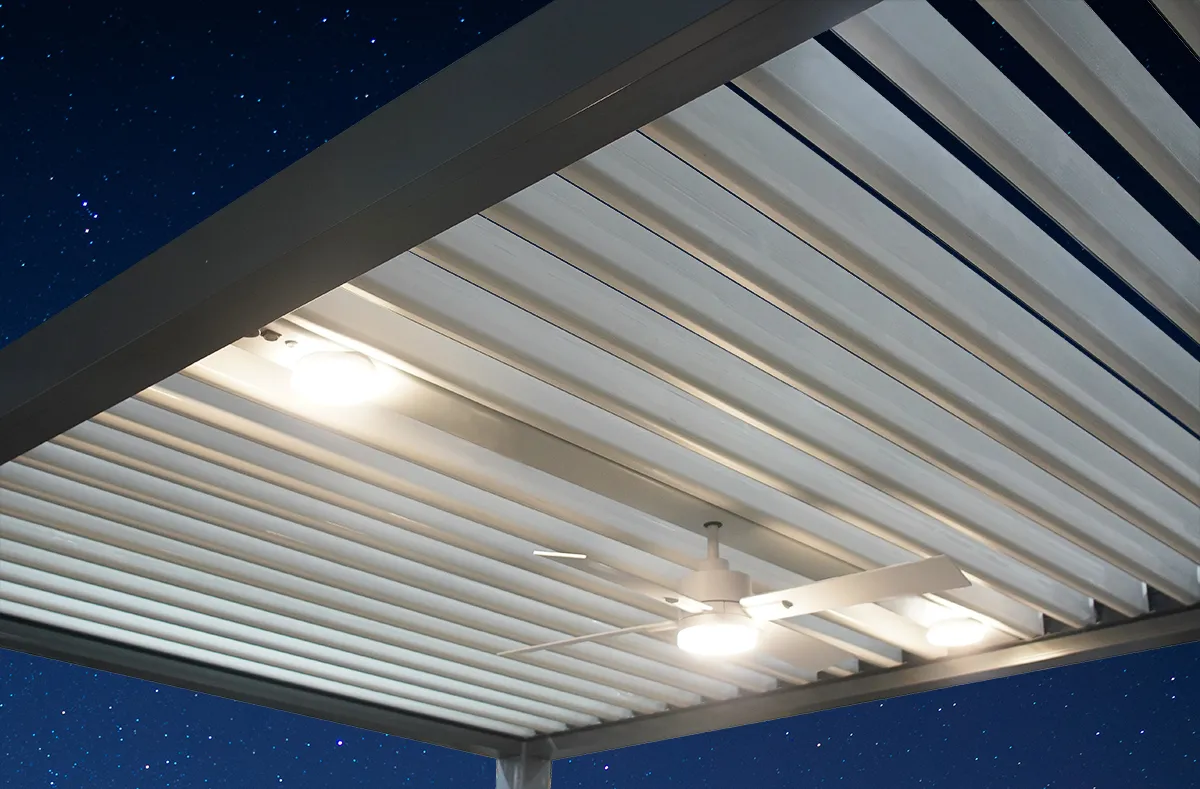

- •Wireless solar power — Built-in solar panels charge the battery, operating the motor, LED lights, and ceiling fan with no hard wiring required.

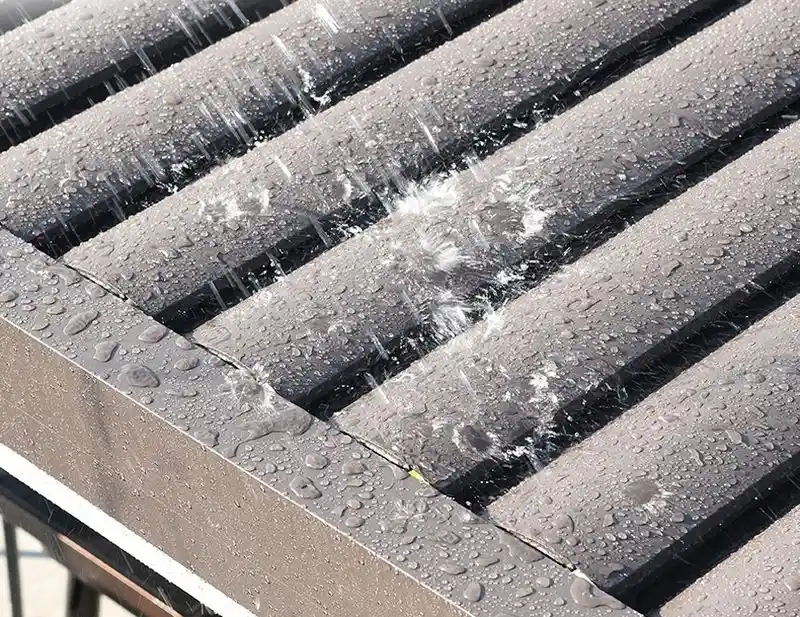

- •Hidden drainage — Rainwater flows along blade grooves into internal gutters, down the posts, and out through concealed drains.
- •Storm-rated structure — Engineered and tested to withstand wind speeds up to 193 km/h (120 mph) when properly anchored.
- •Precise climate control — Louvre blades rotate 0–120° for adjustable shade, 80% ventilation, and 89% light transmission.
Where Atlas pergolas perform
Terraces
Extend indoor living onto balconies and rooftop decks with weather-responsive roofing.
Gardens
Create permanent outdoor pavilions that provide shade without obstructing the landscape.
Poolside
Control UV exposure and glare while maintaining airflow around swimming pools.
Courtyards
Wall-mounted lean-to systems transform enclosed courtyards into year-round usable rooms.
Hospitality
Restaurants, hotels, and resorts use motorised pergolas to maximise seating capacity in all weather.
Our pergola systems
AT Louvre
Adjustable aluminium louvre blades rotate 0–120° for precise climate control. Available in solar-powered (V Series) or electric (VK Series). 10' and 13' standard sizes. White or black.
AT Retractable
Motorised retractable roof panels slide fully open for an open-sky experience, then close for complete weather protection. Ideal for stargazing, events, and spaces where total transparency is the priority.
AT Louvre vs AT Retractable
| Feature | AT Louvre | AT Retractable |
|---|---|---|
| Roof Type | Motorized aluminium louvre blades | Motorised sliding roof panels |
| Opening Mechanism | Blades rotate 0–120° | Panels slide fully open/closed |
| Max Span | 3,000 – 4,000 mm | 6,000 mm |
| Max Projection | Up to 8,600 mm | Up to 8,000 mm |
| Wind Resistance | 193 km/h (120 mph) | 100 km/h |
| Rain Protection | 100% waterproof seal when closed | Integrated drainage channels |
| LED Lighting | Integrated waterproof LEDs | Integrated |
| Power | Wireless solar — no hard wiring | App / Remote / Switch |
Choose AT Louvre when you want continuous overhead protection with micro-adjustable shade and ventilation — ideal for tropical climates where sun angle changes dramatically throughout the day.
Choose AT Retractable when you want the ultimate open-sky experience — perfect for stargazing, events, or spaces where complete transparency is the priority.
How much does an aluminium pergola cost?
Project costs vary according to dimensions, configuration, and finishes. As a guide, Atlas aluminium pergola installations typically range from:
For an accurate quotation tailored to your project dimensions and location, contact our team.
What affects the price?
- 01 Span and projection — Larger structures require more material and engineering.
- 02 Roof type — Louvered systems generally require more componentry than retractable roofs.
- 03 Mounting — Freestanding pavilions need foundation anchoring; wall-mounted lean-tos do not.
- 04 Features — LED lighting, solar power, automated sensors, side screens, and app integration add value.
- 05 Finish — Anodised and premium powder-coat options vary by specification.
Technical questions
What is the difference between a louvered pergola and a retractable roof pergola?
A louvered pergola (AT Louvre) features adjustable aluminium blades that rotate 0–120° for precise control of sunlight, shade, and ventilation while remaining overhead. A retractable roof pergola (AT Retractable) features sliding panels that fully open to the sky, offering the ultimate flexibility between shelter and open-air living.
How does the solar power system work on Atlas pergolas?
The AT Louvre integrates discreet photovoltaic panels into the structure. These charge an internal battery that powers the motorized roof, LED lighting, and ceiling fan — eliminating the need for external wiring. A full charge provides 7–8 hours of continuous operation and recharges in approximately 2–3 days of sunlight.
Can Atlas pergolas withstand tropical storms and heavy monsoon rain?
Yes. The AT Louvre is engineered and tested to withstand wind speeds up to 193 km/h (120 mph) when properly anchored to a concrete slab. When blades are fully closed, a rubber strip creates a 100% waterproof seal, and hidden drainage channels guide rainwater down the posts. The AT Retractable is rated for 100 km/h winds with integrated drainage.
What surfaces are suitable for pergola installation?
Atlas pergolas should be installed on a concrete slab or wooden deck with anchor bolts for secure fastening. Patio pavers are not recommended as they can shift over time and compromise stability. Both freestanding and wall-mounted (lean-to) configurations are available.
Ready to extend your living space?
Our team will guide you from concept to installation — whether you are an architect, developer, or homeowner.
